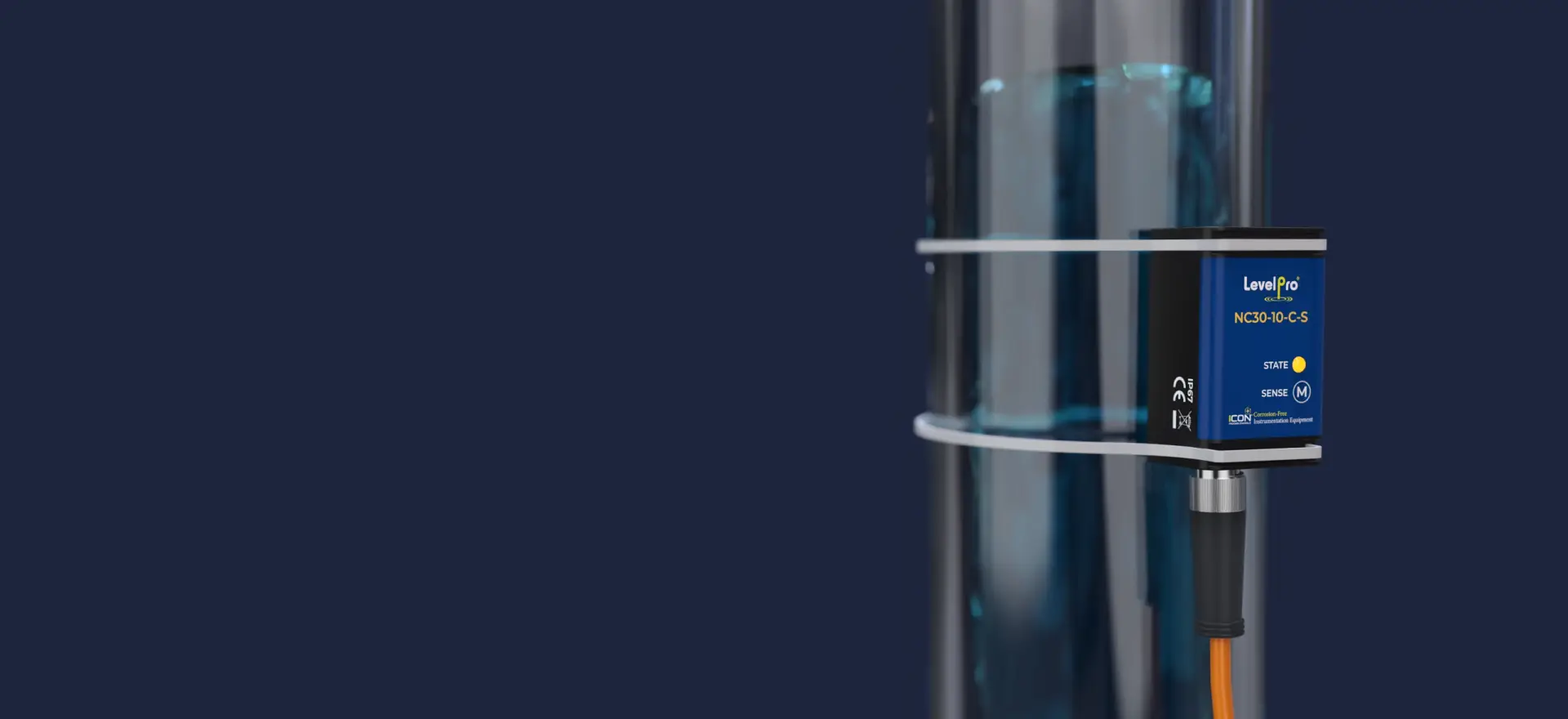

NC-30 Level | Flow Switch
The NC30 Non-Contact liquid Level | Flow Sensor has been designed using high frequency technology to sense the presence of liquid | conductive | non conductive. Suitable for Non-Metallic Tubing | Tanks | Drums | Pipes.
Key Features
- All Plastic PP Design
- Easy to Install
- M12 Connector or Fixed Cable Connector
- Senses up to 0.3″ (8mm) Wall Thickness
- Non-Intrusive Liquid Level / Flow Detection through Plastic or Fiberglass Walls
- LED Indicator
- Measure up to 2″ Pipe Diameter – PVC,CPVC Sch 40, 80, SDR 11
FAQ
Specifications
Documentation
Application
Installation Fittings
Videos
FAQ
faq-section-tab
Specifications
specification-section-tab
Documentation
document-section-tab
Application
application-section-tab
Installation Fittings
fitting-section-tab
Videos
video-section-tab
- What is a Radar Level Sensor?
A liquid level sensor operates by detecting the presence or absence of material or determining the level of material
within a container. This is achieved using various technologies like capacitance, ultrasonic waves, or, as in the case of
radar, by measuring the time taken for a signal to bounce back from the material surface. Level sensing can be contact
or non-contact-based, depending on the method employed. A radar level sensor is a device used to measure the level of
liquids, solids, or slurries in various challenging industrial applications. It utilizes radar technology to determine the
distance from the sensor to the surface of the material being measured.
- What is a Radar Level Sensor?
A liquid level sensor operates by detecting the presence or absence of material or determining the level of material
within a container. This is achieved using various technologies like capacitance, ultrasonic waves, or, as in the case of
radar, by measuring the time taken for a signal to bounce back from the material surface. Level sensing can be contact
or non-contact-based, depending on the method employed. A radar level sensor is a device used to measure the level of
liquids, solids, or slurries in various challenging industrial applications. It utilizes radar technology to determine the
distance from the sensor to the surface of the material being measured.
| Technical Specifications | ||
| Supply Voltage | 6–30 VDC | |
| Supply Current | Output type: PNP Pulse — Max. 0.6 mA (OFF) | 7 mA (ON) | |
| Output type: Relay — 2-Wire Switch — Max. 0.6 mA (OFF state) | ||
| Switched Current (Min / Max) | Output type: PNP Pulse — 100 mA | |
| Output type: Relay — 2-Wire Switch — 3.3 mA | 40 mA | ||
| Remanent Voltage — ON State | Output type: PNP Pulse — 1.8 V | |
| Output type: Relay — 2-Wire Switch — 6.0 V | ||
| Switching Frequency | Max. 1 Hz | |
| Max. Thickness of the Vessel Wall | Conductive liquids: 0.3" (8 mm) | |
| Ambient Temperature Range | −4 to 176°F | −20 to 80°C | |
| Temperature Range at the Tube or Vessel Surface | −4 to 194°F | −20 to 90°C | |
| Housing Material | Plastic (PP) | |
| Protection Class | NEMA 4X | IP67 | |
| Cable Connection | PVC | |
| Weight (Including 2 m Cable) | Approx. 60 g | |
