TPP Liquid Temperature Sensor
The TPP Series Temperature Sensors from Icon Process Controls are engineered for precise temperature measurement in corrosive environments. These sensors ensure accurate monitoring across various industrial applications.
The TPP Series Temperature Sensors utilize a resistance temperature detector (RTD) element housed within the PTFE probe. As the process temperature changes, the resistance of the RTD element varies proportionally. This change in resistance is converted into a 4-20mA output signal, representing the corresponding temperature. The robust PFA and PTFE construction ensures that the sensor remains unaffected by corrosive media, providing accurate and reliable temperature measurements. Their advanced features and robust construction make them an excellent choice for maintaining optimal process conditions.
Key Features
- PFA | PTFE Body
- 4-20mA Loop Powered
- High Accuracy± 0.5%
- Standard Range 0 – 100oC | 32-212oF
- NPT Process Connection

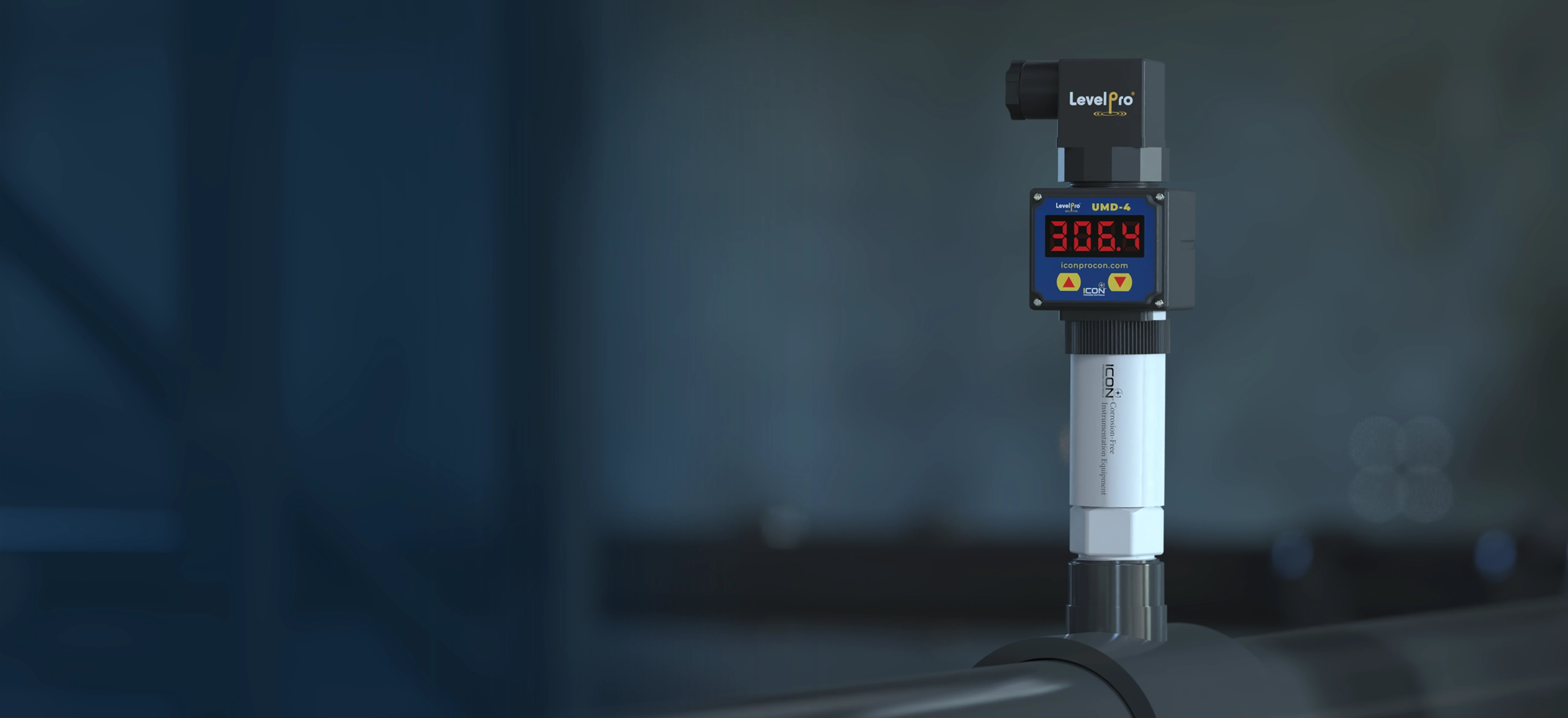

- M12 | DIN Connection Options
- Optional LED Display
FAQ
Specifications
Documentation
Application
Installation Fittings
Videos
FAQ
faq-section-tab
Specifications
specification-section-tab
Documentation
document-section-tab
Application
application-section-tab
Installation Fittings
fitting-section-tab
Videos
video-section-tab
- What is a Radar Level Sensor?
A liquid level sensor operates by detecting the presence or absence of material or determining the level of material
within a container. This is achieved using various technologies like capacitance, ultrasonic waves, or, as in the case of
radar, by measuring the time taken for a signal to bounce back from the material surface. Level sensing can be contact
or non-contact-based, depending on the method employed. A radar level sensor is a device used to measure the level of
liquids, solids, or slurries in various challenging industrial applications. It utilizes radar technology to determine the
distance from the sensor to the surface of the material being measured.
- What is a Radar Level Sensor?
A liquid level sensor operates by detecting the presence or absence of material or determining the level of material
within a container. This is achieved using various technologies like capacitance, ultrasonic waves, or, as in the case of
radar, by measuring the time taken for a signal to bounce back from the material surface. Level sensing can be contact
or non-contact-based, depending on the method employed. A radar level sensor is a device used to measure the level of
liquids, solids, or slurries in various challenging industrial applications. It utilizes radar technology to determine the
distance from the sensor to the surface of the material being measured.
| Technical Specifications | ||
| Operating Voltage | 9–30 VDC | |
| Output | 4–20 mA (Loop Powered) | |
| Connection | ½" NPT | |
| Operating Temperature | −25.6° to 212°F | −32° to 100°C | |
| Wetted Part | PTFE Teflon® | |
Applications
- Chemicals | Acids | Bases
- Tank Temperature
- Industrial Process Piping
- High | Low Temperature Detection
