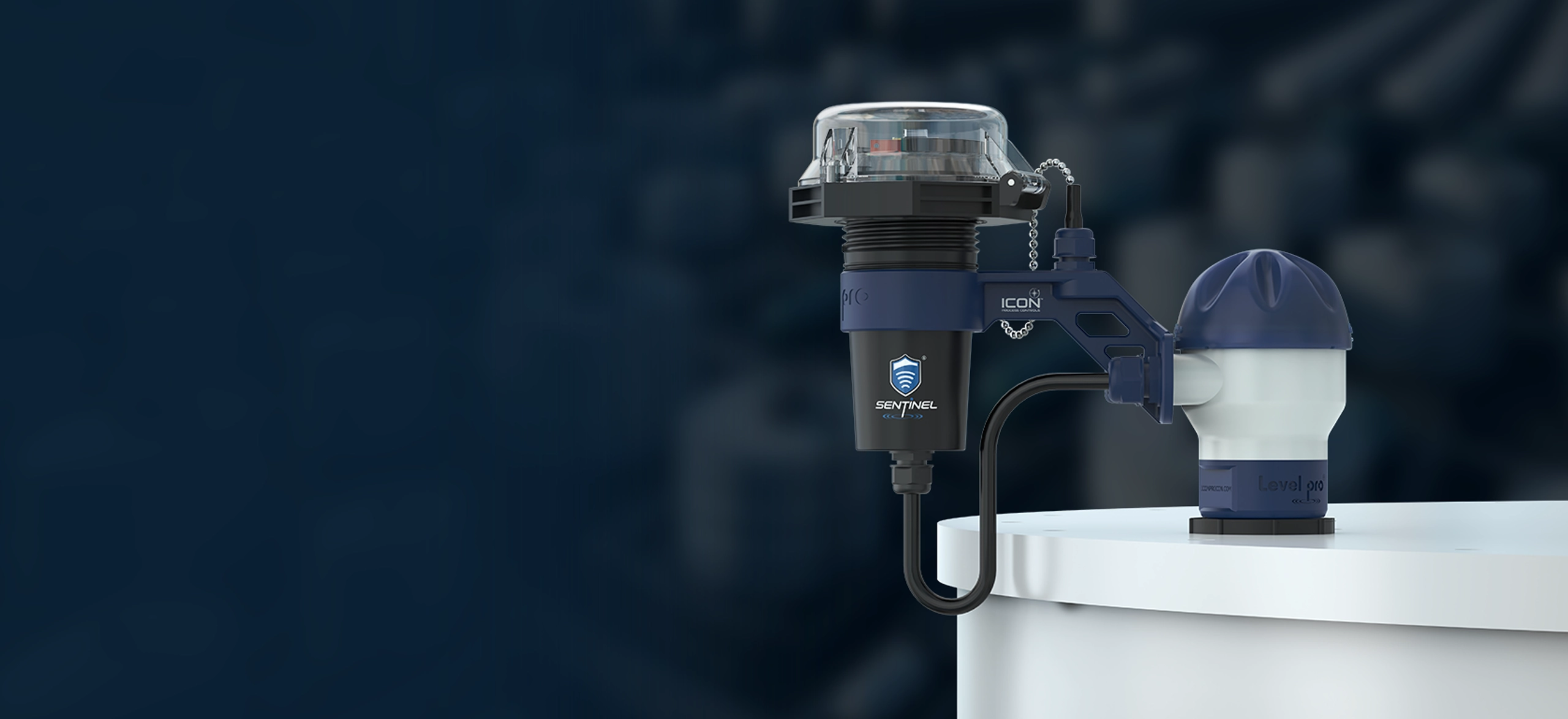

Remote Liquid Tank Level Monitoring
Sentinel® uses sensors made from materials that resist corrosion, making it ideal for tough environments like water treatment, chemical, and oil industries. The system gives accurate measurements and continuous monitoring, ensuring reliable tank level data, even in difficult conditions. It offers remote monitoring, so physical inspections are not needed. Companies can check tank levels from a central location with 24/7 access via the cloud.
The system easily integrates with existing control systems, making data management simple. Real-time updates allow operators to react quickly to changes. Alerts notify operators before tank levels become critical, preventing overflows, shortages, or environmental damage. These features help companies manage inventory better, reduce waste, and improve efficiency.
Sentinel® helps meet strict safety and environmental standards, such as OSHA and EPA regulations. It records data to help companies stay compliant and avoid fines. By preventing overflows and spills, Sentinel® also lowers the risks of handling hazardous materials. The system helps protect the environment by reducing waste and preventing leaks that could harm soil or groundwater.
Key Features
- Battery Operated – No Programming
- Battery powered up to 5 years (3 calls/day)
- Remote Tank Monitoring via Cellular Networks
- E-mail/text Reporting Alarms
- Mobile Ready Access
- 24/7 access to data through Cloud Based Sentinel 247TM Online
- Optional LB50 Mounting Bracket
FAQ
Specifications
Documentation
Application
Installation Fittings
Videos
FAQ
faq-section-tab
Specifications
specification-section-tab
Documentation
document-section-tab
Application
application-section-tab
Installation Fittings
fitting-section-tab
Videos
video-section-tab
- What is a Radar Level Sensor?
A liquid level sensor operates by detecting the presence or absence of material or determining the level of material
within a container. This is achieved using various technologies like capacitance, ultrasonic waves, or, as in the case of
radar, by measuring the time taken for a signal to bounce back from the material surface. Level sensing can be contact
or non-contact-based, depending on the method employed. A radar level sensor is a device used to measure the level of
liquids, solids, or slurries in various challenging industrial applications. It utilizes radar technology to determine the
distance from the sensor to the surface of the material being measured.
- What is a Radar Level Sensor?
A liquid level sensor operates by detecting the presence or absence of material or determining the level of material
within a container. This is achieved using various technologies like capacitance, ultrasonic waves, or, as in the case of
radar, by measuring the time taken for a signal to bounce back from the material surface. Level sensing can be contact
or non-contact-based, depending on the method employed. A radar level sensor is a device used to measure the level of
liquids, solids, or slurries in various challenging industrial applications. It utilizes radar technology to determine the
distance from the sensor to the surface of the material being measured.
| Technical Specifications | ||
| Wireless Communication | GSM Digital Wireless Radio | |
| RF Approval | FCC Part 15B Approved | |
| Frequency Bands | GSM 850 | 900 MHz WLAN | |
| Output Voltage | Nominally 14/24 VDC | |
| Output Current | 4–20 mA | |
| Enclosure | NEMA 4X | UL Approved | |
| Lithium Battery | Replaceable Lithium Ion Batteries | |
| Body Material | PP | PC | |
| Operating Temperature | −13°F to 158°F | −25°C to 70°C | |
Applications
- Bluetooth Connectivity
- Small Dead Band
- Data Logging
- 4-20mA | RS485 Output
- Data Logging
- 4-20mA | RS485 Output
