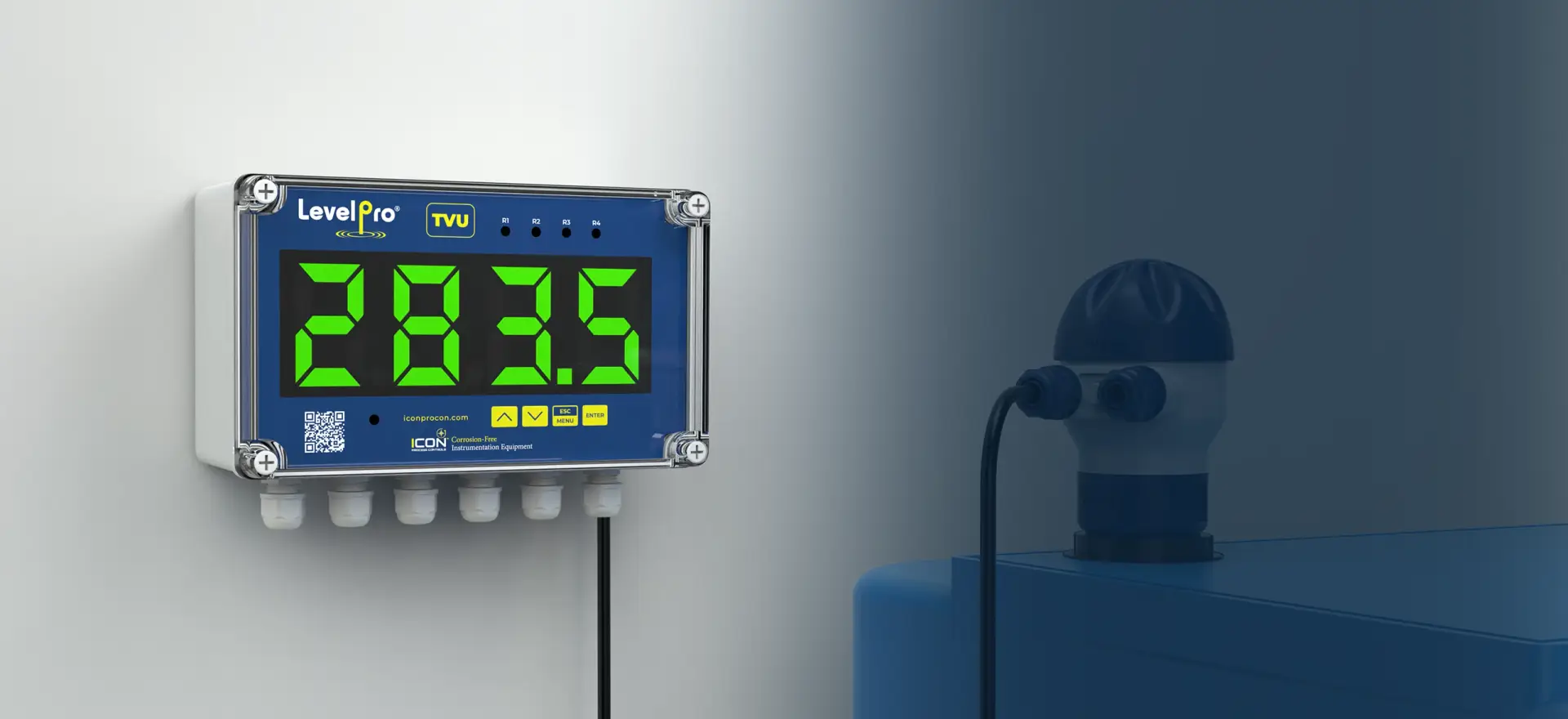

Key Features

  • Programmable LED Colors
  • Extra Large LED Digits
  • NEMA 4X Enclosure
  • 4-20mA | RS485 | Relay Outputs
  • 24VDC Power Output to Sensor
  • Adjustable Display Brightness
  • What is a Radar Level Sensor?
A liquid level sensor operates by detecting the presence or absence of material or determining the level of material within a container. This is achieved using various technologies like capacitance, ultrasonic waves, or, as in the case of radar, by measuring the time taken for a signal to bounce back from the material surface. Level sensing can be contact or non-contact-based, depending on the method employed. A radar level sensor is a device used to measure the level of liquids, solids, or slurries in various challenging industrial applications. It utilizes radar technology to determine the distance from the sensor to the surface of the material being measured.
  • What is a Radar Level Sensor?
A liquid level sensor operates by detecting the presence or absence of material or determining the level of material within a container. This is achieved using various technologies like capacitance, ultrasonic waves, or, as in the case of radar, by measuring the time taken for a signal to bounce back from the material surface. Level sensing can be contact or non-contact-based, depending on the method employed. A radar level sensor is a device used to measure the level of liquids, solids, or slurries in various challenging industrial applications. It utilizes radar technology to determine the distance from the sensor to the surface of the material being measured.
General
DisplayLED | 4 × 57 mm High | Adjustable Color | Adjustable Brightness
Displayed Values−999 ± 9999
Stability50 ppm | °C
Transmission Parameters1200…115200 bit/s, 8N1 / 8N2
Protection ClassNEMA 4X | IP67
Input Signal | Supply
Standard4–20 mA | 0–10 V | 0–150 mV RTD
Voltage85–260 V AC/DC | 16–35 V AC, 19–50 V DC*
Output Signal | Supply
Standard4 × Relays (5 A) | 2 × Relay (5 A) + 4–20 mA
Voltage24 VDC
Passive current output *4–20 mA (Operating Range Max. 2.8–24 mA)
Performance
Accuracy0.1% @ 25°C One Digit
Temperatures
Operating Temperatures−40 – 158°F | −40 – 70°C
Materials | Wetted
HousingPolycarbonate
Notes* optional

Applications

  • Bluetooth Connectivity
  • Small Dead Band
  • Data Logging
  • 4-20mA | RS485 Output
  • Data Logging
  • 4-20mA | RS485 Output
