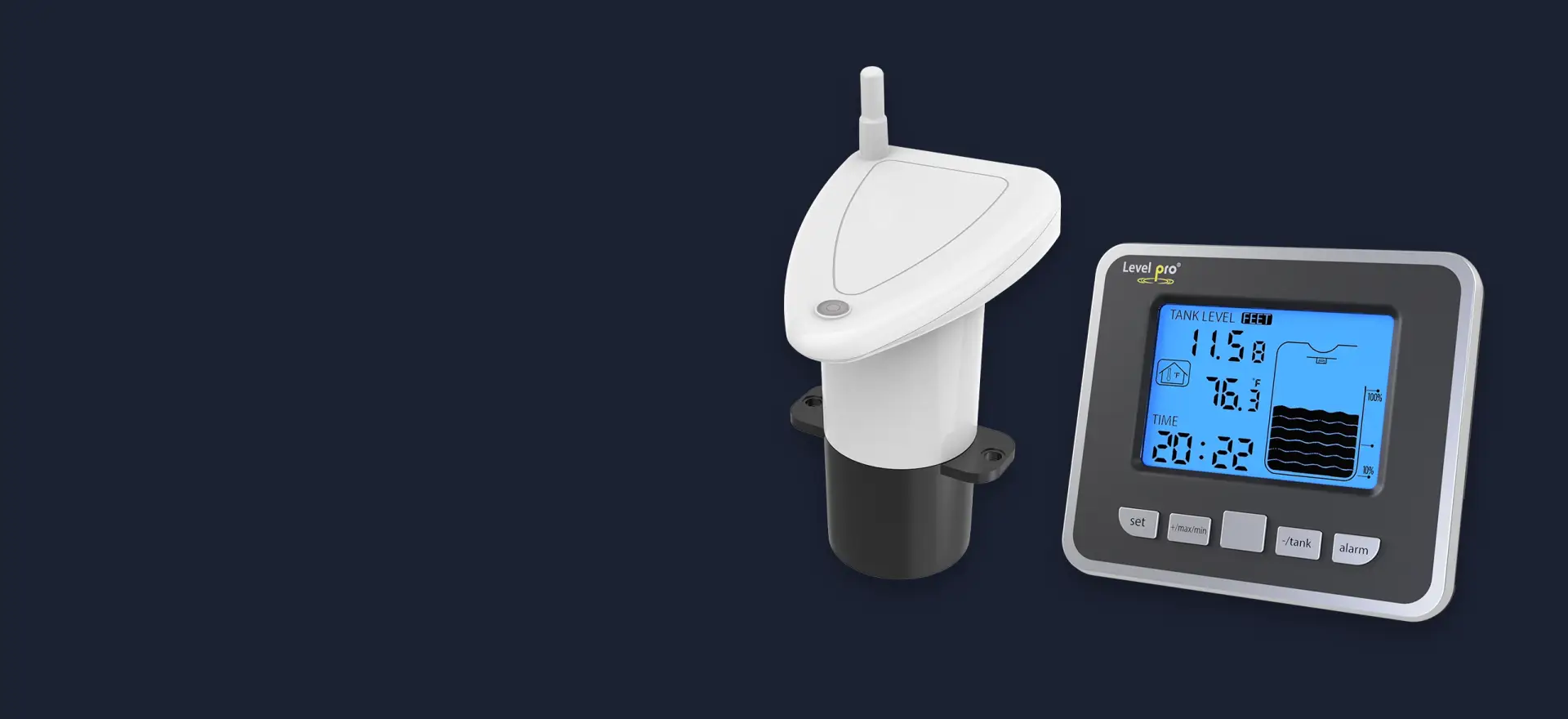

Key Features

  • Battery Operated
  • Digital LCD Display
  • NEMA 4X Plastic PP Enclosure
  • Remote Applications / No Wiring Required
  • Approx 5 Years Life Expectancy
  • All Plastic Design
  • Wireless Communication to remote display over 200ft
  • Low / High Level Display Indication
  • What is a Radar Level Sensor?
A liquid level sensor operates by detecting the presence or absence of material or determining the level of material within a container. This is achieved using various technologies like capacitance, ultrasonic waves, or, as in the case of radar, by measuring the time taken for a signal to bounce back from the material surface. Level sensing can be contact or non-contact-based, depending on the method employed. A radar level sensor is a device used to measure the level of liquids, solids, or slurries in various challenging industrial applications. It utilizes radar technology to determine the distance from the sensor to the surface of the material being measured.
  • What is a Radar Level Sensor?
A liquid level sensor operates by detecting the presence or absence of material or determining the level of material within a container. This is achieved using various technologies like capacitance, ultrasonic waves, or, as in the case of radar, by measuring the time taken for a signal to bounce back from the material surface. Level sensing can be contact or non-contact-based, depending on the method employed. A radar level sensor is a device used to measure the level of liquids, solids, or slurries in various challenging industrial applications. It utilizes radar technology to determine the distance from the sensor to the surface of the material being measured.
Technical Specifications
Indoor Temperature Range32 to 140°F | 0 to 60°C
Liquid Temperature Range-40 to 140°F | -40 to 60°C
Display ScreenDigital LCD Display
Liquid Depth Range0 – 15 m
Display Accuracy0.01 m
Measurement Accuracy±0.03 m
Transmission Frequency433 MHz
Launch Range100 m (Open Area)
Transmitter Frequency Sends once every 30 seconds when liquid level changes; once every 3 minutes when it does not.
Alarm Duration120 sec
Power Supply Receiver: 2×AA batteries   |   Transmitter: 6×AAA batteries
EnclosureNEMA 4X PP

Applications

  • Chemical Storage
  • Chemical Sumps
  • Double-walled Tanks
